Unlocking the Secrets of PWM to Voltage Conversion

1. Understanding PWM and Its Role

Pulse Width Modulation, or PWM as it's affectionately known, is a clever technique for controlling the amount of power delivered to an electrical device. Think of it like a light dimmer switch, but instead of manually adjusting the brightness, the electronic circuit rapidly switches the power on and off. The "width" of the pulse — that is, the amount of time the power is on during each cycle — determines the average power delivered. A wider pulse means more power, while a narrower pulse means less. It's like a digital on/off switch playing an analog game, and it's incredibly useful in a myriad of applications, from controlling motor speeds to dimming LEDs. It's the unsung hero in many of our gadgets.

But what if you need a nice, smooth analog voltage instead of a series of rapid on/off pulses? That's where the magic of PWM to voltage conversion comes in! Imagine needing to control an analog device like a volume knob (remember those?) using a microcontroller that only spits out PWM signals. You'd need a way to translate those pulses into a corresponding voltage. Thats the beauty of this conversion; it bridges the digital and analog worlds.

Why bother with PWM in the first place? Well, it's super efficient! Because the switch is either fully on or fully off, very little power is wasted as heat. This makes it a popular choice for battery-powered devices, where every milliamp counts. Plus, microcontrollers love PWM! It's easy to generate with their built-in timers, making it a cost-effective solution for many control applications. The alternative, analog control, often requires more complex and expensive circuitry.

So, we've established that PWM is cool and versatile. But how do we actually take those pulses and turn them into a steady voltage? Get ready, because we're about to dive into the heart of the conversion process!

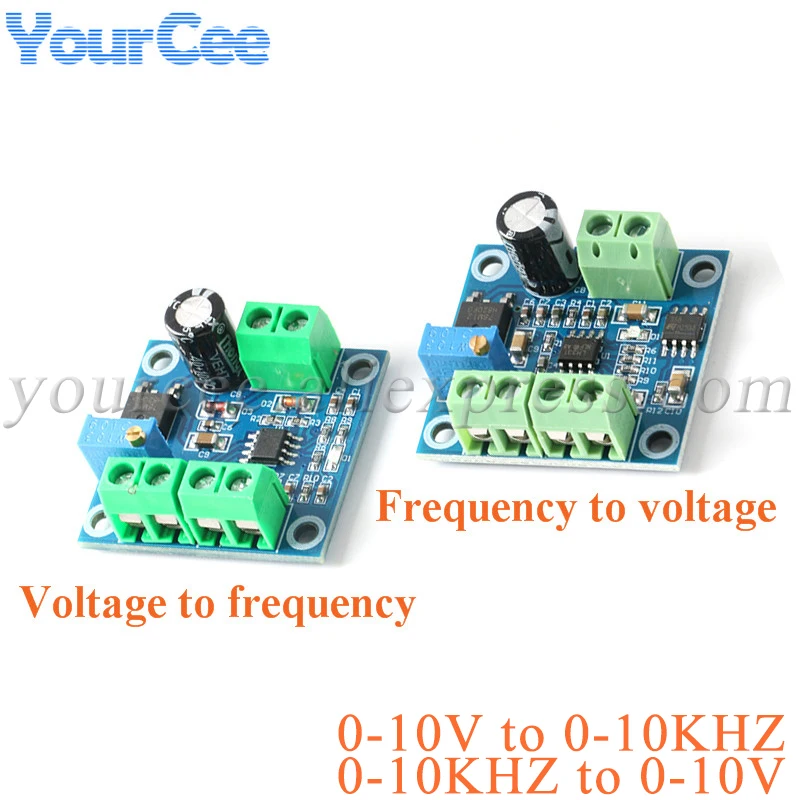

PWM To 05V Converter Module Voltage

The Heart of the Matter

2. Filtering Out the Noise

The key to converting PWM to voltage is a little circuit called a low-pass filter. Think of it as a sieve that separates the wheat from the chaff — or, in this case, the DC voltage from the high-frequency PWM signal. The goal is to let the average DC voltage through while blocking the rapid switching frequencies of the PWM. Its like teaching your electronics to ignore distractions and focus on the important stuff.

At its simplest, a low-pass filter consists of a resistor and a capacitor (RC filter). The resistor resists the flow of current, and the capacitor stores electrical energy. When the PWM signal hits this filter, the capacitor charges up during the "on" portion of the pulse and discharges through the resistor during the "off" portion. The resistor and capacitor values are carefully chosen to smooth out the PWM signal, resulting in a relatively stable DC voltage. Selecting the right components is essential for optimal performance. Choose poorly, and your voltage will be wobbly and inaccurate!

The effectiveness of the low-pass filter depends on its "cutoff frequency." This is the frequency at which the filter starts to significantly attenuate (reduce) the signal. Ideally, the cutoff frequency should be much lower than the PWM frequency. This ensures that the PWM signal is effectively blocked, while the desired DC voltage passes through relatively unscathed. The lower the cutoff frequency, the smoother the output voltage, but the slower the response to changes in the PWM signal. It's a balancing act, like trying to spin plates without letting any crash!

There are also more complex filters, like active filters using op-amps, which can provide better performance and more control over the filtering characteristics. These active filters can have steeper roll-offs (meaning they block frequencies more effectively) and can even provide gain (amplification) to the output signal. But for most basic PWM-to-voltage conversion applications, a simple RC filter does the trick. It's the workhorse of the PWM conversion world.

Voltage To PWM Converter Module 0100 05V 010V Digital Analog

Building Your Own PWM to Voltage Converter

3. Simple Circuit, Big Impact

Now that you understand the theory, let's get our hands dirty and build a simple PWM to voltage converter! You'll need a few basic components: a resistor, a capacitor, and a PWM signal source (like a microcontroller). For example, let's assume you have a 5V PWM signal with a frequency of 1 kHz.

First, you'll need to select appropriate values for the resistor and capacitor. A good starting point is to choose a cutoff frequency that's about one-tenth of the PWM frequency (in this case, 100 Hz). Using the formula for the cutoff frequency of an RC filter (f = 1 / (2 pi R * C)), you can calculate the required resistor and capacitor values. For example, if you choose a resistor of 10 k, you'll need a capacitor of approximately 0.16 F. In reality, 0.1 F or 0.22 F would be the more practical values to use, considering readily available parts.

Next, connect the components as follows: Connect one end of the resistor to the PWM signal source. Connect the other end of the resistor to one lead of the capacitor. Connect the other lead of the capacitor to ground. The voltage across the capacitor is your converted DC voltage. It is important to use the correct polarity with electrolytic capacitors.

Finally, test your circuit! Vary the duty cycle of the PWM signal and observe the output voltage. You should see a corresponding change in the DC voltage. A duty cycle of 0% will result in 0V, a duty cycle of 50% will result in approximately 2.5V, and a duty cycle of 100% will result in approximately 5V. Fine-tune the resistor and capacitor values as needed to optimize the performance of your converter. And remember, safety first! Always double-check your connections before applying power. No one likes the smell of burnt components (or worse!).

Arduino PWM To DC Converter With Op Amp Slowly But Steadily Rising

Fine-Tuning and Optimization

4. Getting the Best Performance

So, you've built your PWM to voltage converter, but the output voltage isn't quite as smooth as you'd like? Don't despair! There are a few things you can do to improve the performance. One option is to increase the PWM frequency. This will make it easier for the low-pass filter to smooth out the signal. Most microcontrollers allow you to adjust the PWM frequency, so experiment with different values to see what works best for your application.

Another approach is to use a higher-order low-pass filter. This involves cascading multiple RC filters together to achieve a steeper roll-off. Each additional stage of filtering will further attenuate the PWM signal, resulting in a smoother output voltage. However, higher-order filters can also introduce delays in the response time, so it's important to strike a balance between smoothness and responsiveness. Its like adding extra layers of frosting to a cake; it looks nicer, but it takes longer to prepare.

You can also add an op-amp buffer after the low-pass filter. This will isolate the filter from the load, preventing changes in the load impedance from affecting the output voltage. An op-amp buffer has a high input impedance and a low output impedance, which means it can drive a wide range of loads without significantly loading down the filter. Think of it as a bodyguard for your signal, protecting it from outside influences.

Finally, consider using a precision resistor and capacitor. The tolerance of the components can affect the accuracy of the output voltage. Using components with a lower tolerance (e.g., 1% resistors and capacitors) will improve the overall accuracy of your converter. If you really need high accuracy, consider trimming the resistor value with a potentiometer to calibrate the output voltage. Every little bit helps when you're chasing perfection!

Digital Control Solution For 3level Inverters Renesas

Beyond the Basics

5. Taking It to the Next Level

Once you've mastered the basics of PWM to voltage conversion, you can start exploring more advanced techniques. For example, you can use a microcontroller to dynamically adjust the resistor or capacitor values in the low-pass filter, allowing you to adapt the filter characteristics to different PWM frequencies or signal conditions. This is known as an adaptive filter and can provide optimal performance in a wide range of scenarios. It's like having a filter that automatically adjusts to the changing needs of your signal.

Another advanced technique is to use a digital-to-analog converter (DAC) instead of a simple low-pass filter. A DAC is a specialized electronic circuit that directly converts a digital value into an analog voltage. While DACs can be more expensive and complex than low-pass filters, they offer higher accuracy and faster response times. If you need the absolute best performance, a DAC might be the way to go. Its like trading in your bicycle for a sports car; it's faster and more precise, but it also requires more investment.

For applications that require galvanic isolation (separation of electrical circuits to prevent ground loops or electrical shock), you can use an optocoupler to isolate the PWM signal from the voltage output. An optocoupler uses light to transmit the signal, providing a high degree of isolation. This is particularly important in safety-critical applications where electrical isolation is required. Think of it as a protective barrier between your circuits, preventing unwanted electrical connections.

Lastly, experiment with different PWM strategies, such as space vector modulation (SVM), to improve the performance of your converter. SVM is a more advanced PWM technique that can reduce harmonic distortion and improve efficiency. While SVM is more complex to implement, it can provide significant benefits in certain applications. It's like learning a new language to better communicate with your electronics!
